Equipped with an integrated energy-saving motor mounted in the headstock directly on the machine's main shaft (Direct Drive system), which ensures quiet and reliable operation and lower power consumption.
The machine's modern design ensures better ventilation of the motor and therefore faster and more efficient operation and, as a result, longer machine life.
Overlock JACK E4S has a simple panel for adjusting the sewing speed and needle position, as well as the ability to quickly return to the factory settings.
Integrated LED illumination of the working area.

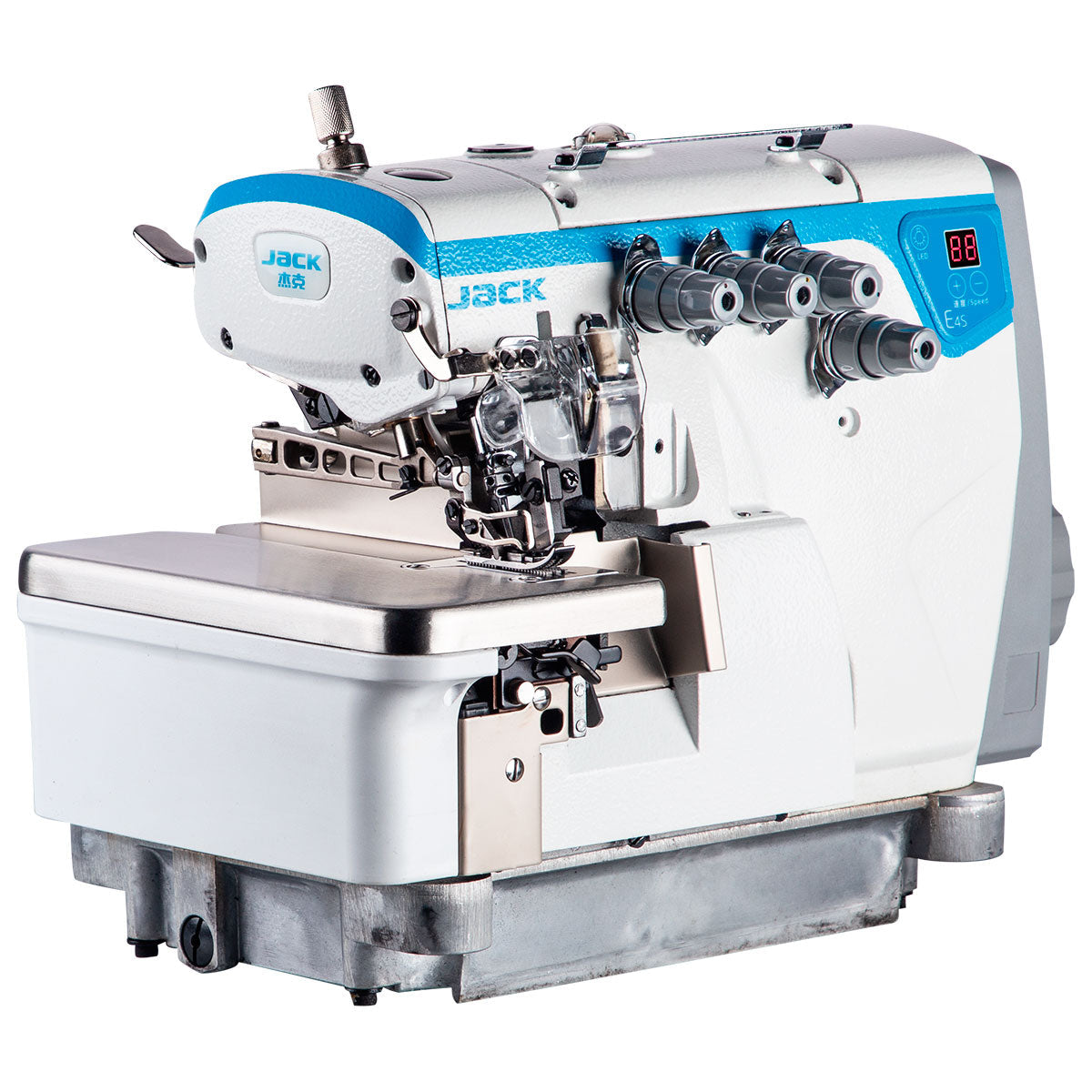

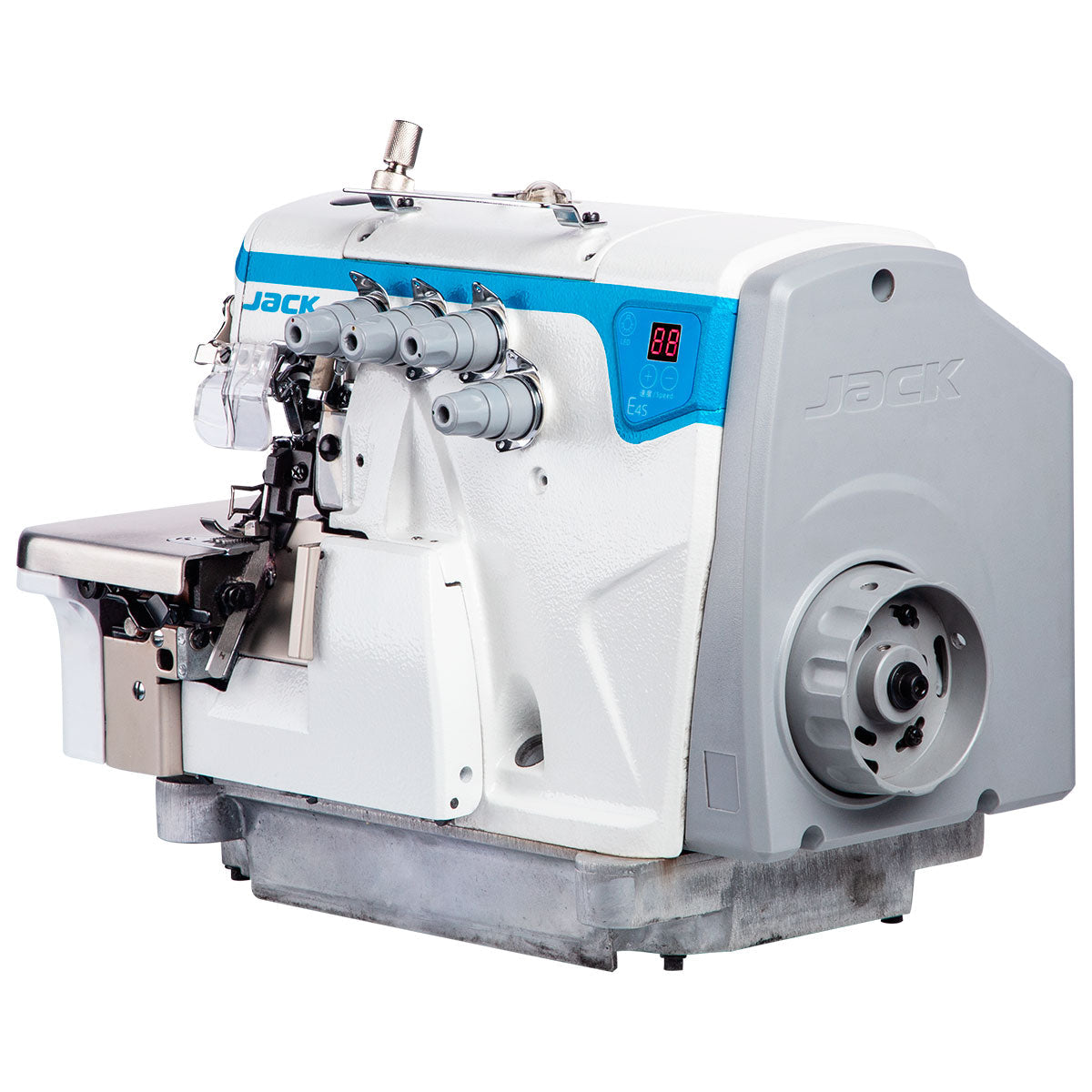

JACK E4S-3-32R2/223
Assembled, ready to sew!
Features
Quick response
Response time is shortened by 40-50% at both start and stop, sewing is easier and sewing speed is higher, which effectively increases productivity.
Single key restart
Through the intelligent panel it is possible to reset the machine, adjust the LED light, easily adjust the parameters and learn the main operations.
MACHINE SPECIFICATIONS:
Model: JK-E4S-3-32-R2/233
Functions: Plain Seam Overedge
Needle System: DCx27 Size #11
Number of Needles: 2
Number of Threads: 3
Spacing Between Needles: 1.5mm
Stitch Width: 4mm x 4.6mm
Stitch Length: 0.8mm - 4.6mm
Differential Ratio: 0.7mm - 2mm

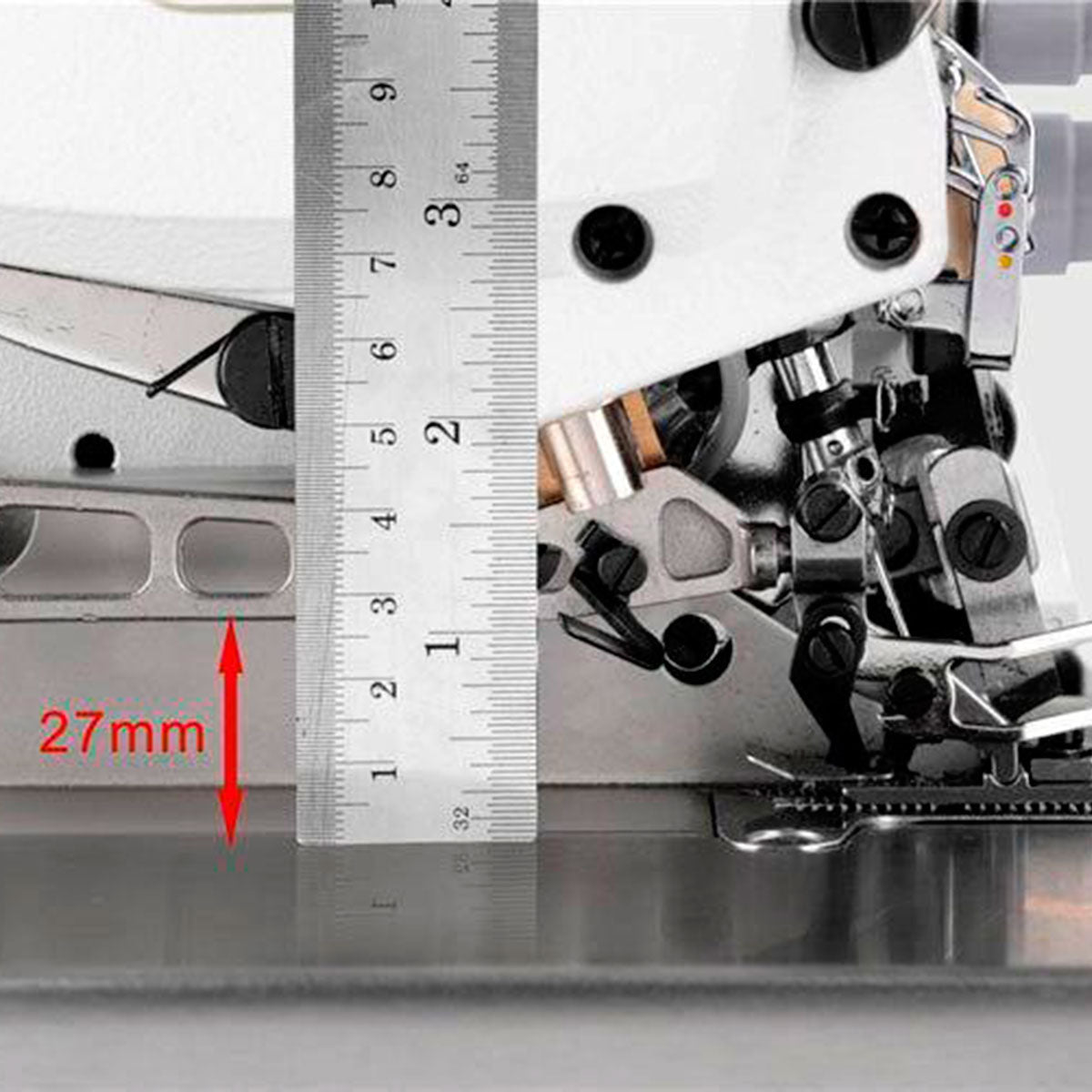

Presser Foot Lifting Height: 5.5mm
Maximum Speed: 5500 SPM (Super High Speed Sewing!)
