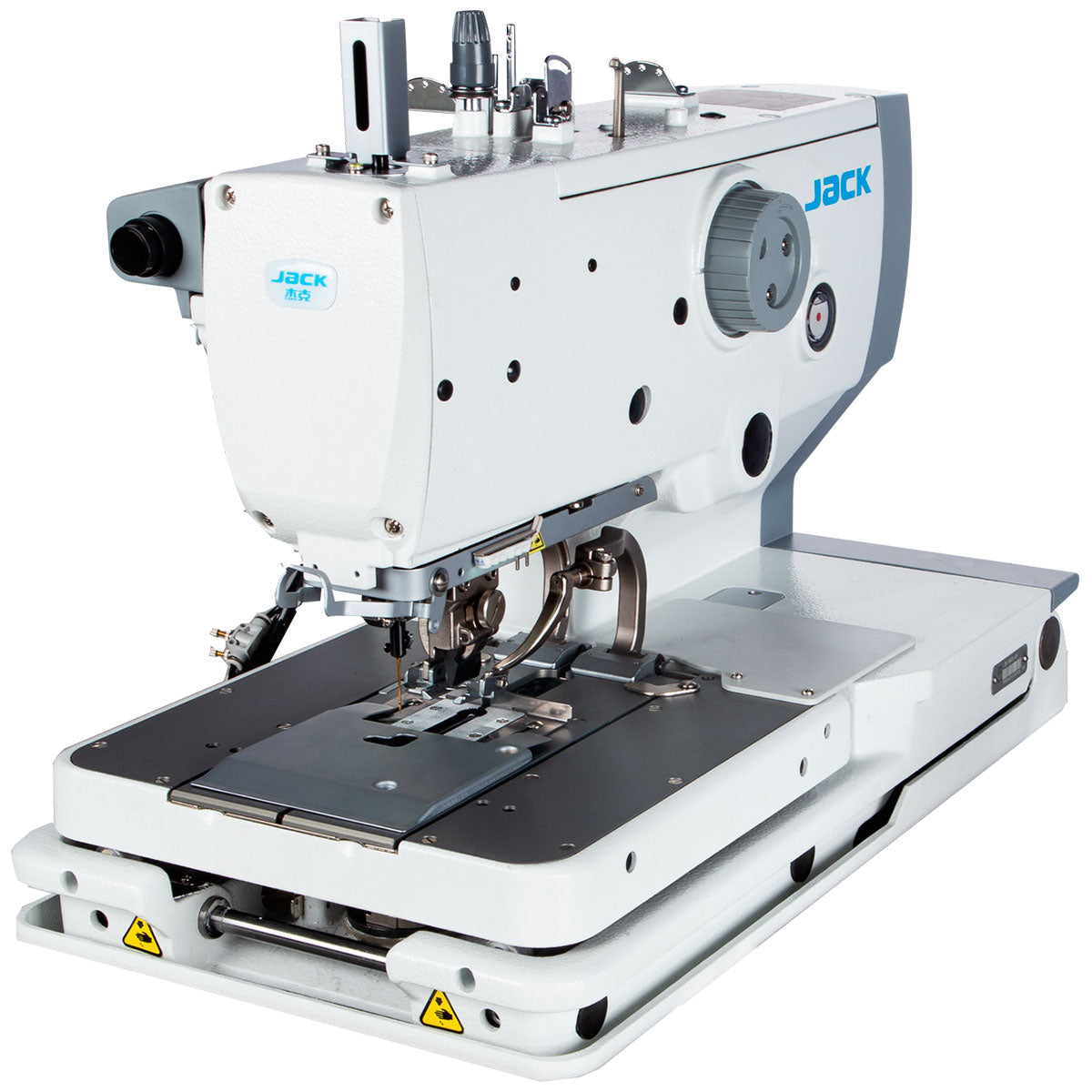

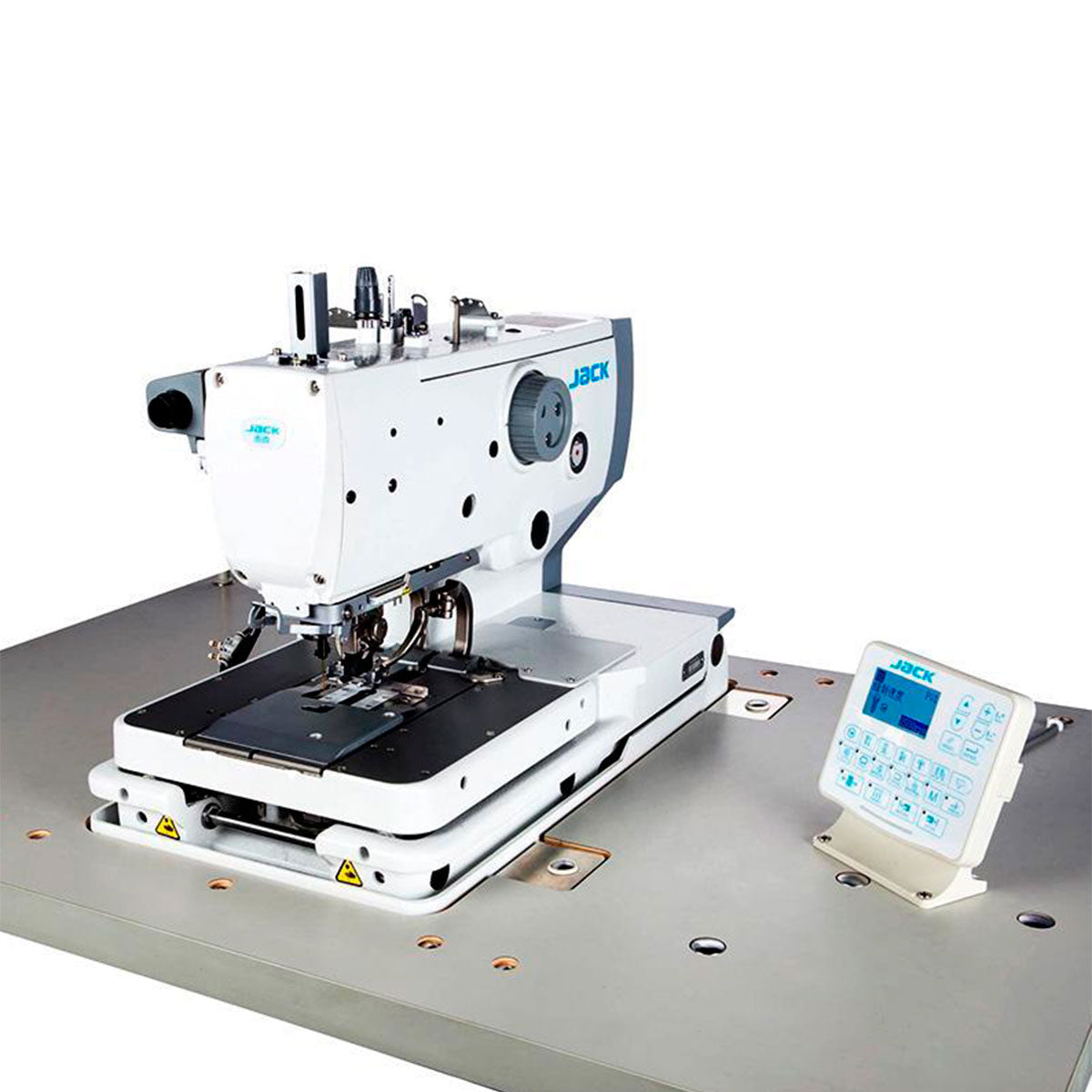

JACK JK-T9820-02 Electronic Keyhole Buttonhole Eyelet Sewing Machine Assembled with Table and Stand Included
JACK JK-T9820-02 Electronic Keyhole Buttonhole Eyelet Sewing Machine Assembled with Table and Stand Included
Regular price
$9,985.00 USD
Regular price
Sale price
$9,985.00 USD
Unit price
/
per
Electronic buttonhole machine for sewing eyelet buttonholes on jeans, pants, jackets, etc.
The machine has a large operating space, beautiful sewing and wide adaptability and variety of buttonholes suitable for multiple operations.
JACK JK-T9820-02
Assembled, ready to sew!
Features
ACCURATE PATTERN MAKING
The servo-controlled machine makes accurate patterns even in high-speed sewing.
LARGE OPERATING SPACE
120 mm machine body spacing is suitable for different fabric types and sewing requirements.
MACHINE SPECIFICATIONS:
- Needle Thread Trimmer: Short Thread Trim
- Bobbin Thread Trimmer: Short Thread Trim
- Main Applicaitons: Jeans, Trousers, Suits, Dresses, and Casual Clothing
- Functions: Trimming both Needle (Upper) Thread and Bobbin (Lower) Threads. No manual trimming required.
- Sewing Length: 22-30mm, 14-22mm, 18-26mm, 26-34mm, 34-42mm
- Standard Presser Foot Length: 30/26mm
- Standard Hammer Length: 24/20mm
- Accessorial Hammer Length: 28/24mm
- Sewing Speed: 1000 to 2500 Stitches per Minute
- Needle Code: 0.5-2.0mm
- Needle System:DDx55B NM: 80 to 120
- Zig Zag Sewing Width: In most conditions, it is between 3.0mm to 4.0mm to 5.0mm at most
- Stream Thread Length: 0mm to 20mm
- Work Clamp Height: 16mm
- Start-off Mode: Double Pedal Switch
- Fabric Feeding Device: Interminnent Cloth-sending of 3 Pulse Motors (X,Y)
- Safety Device: If there are any problems, the computer automatically actions the urgent stop circuit to stop the machine immediately.
- Upper Shaft Motor: WAC Servo-motor 550W

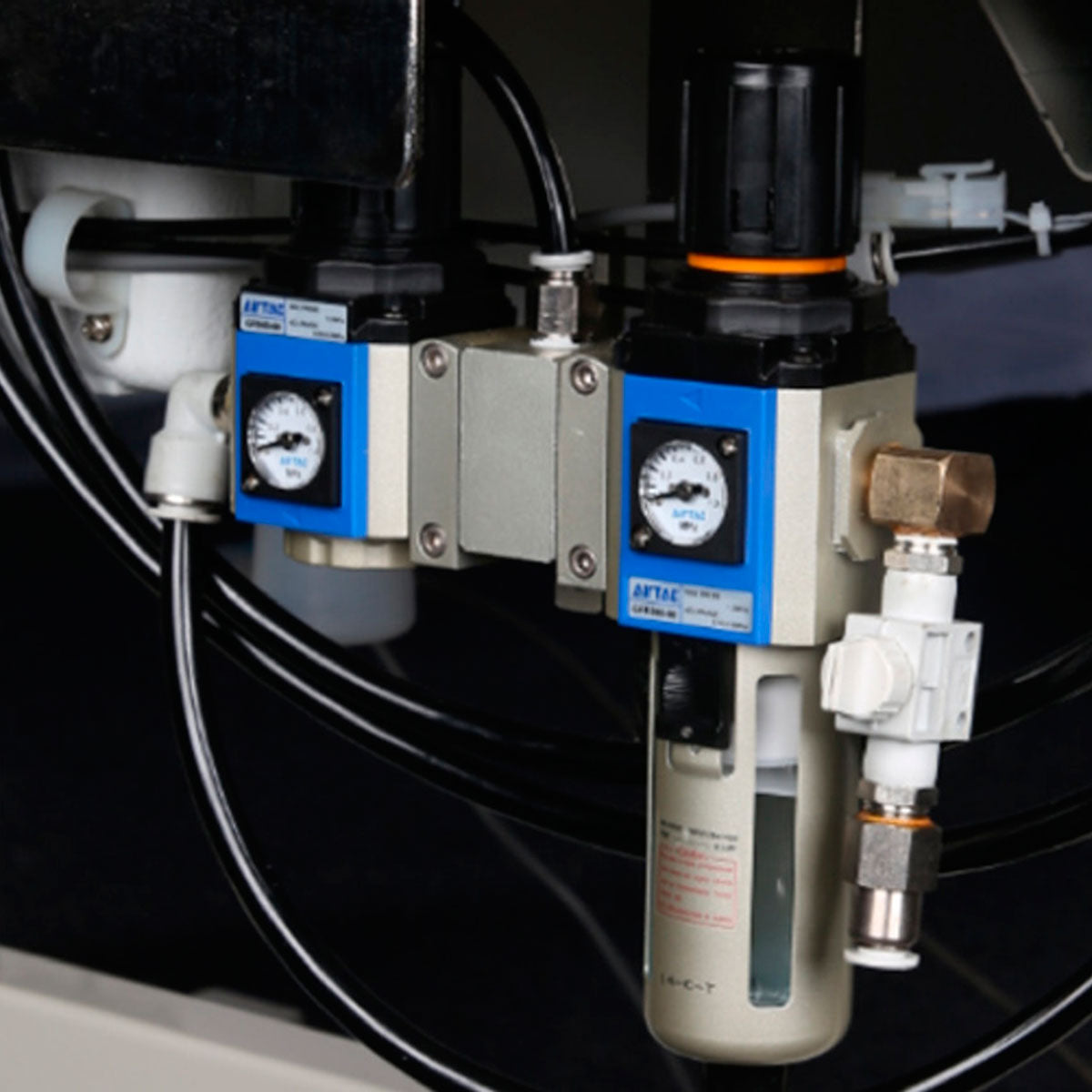

- Air Pressure: Main Regulator 0.5 MPa, Hammer Pressure Regulator 0.4 MPa
- Air Consumption Volume: 43.2 Liters per Minute (8 Cycles/Minute)
- Weights: Machine Head = 120 Kg, Operation Board = 0.6 Kg, Control Box = 14.2-16.2 Kg
- Dimensions: 123mm x 83mm x 144mm
- Power: Single Phase 100V/200V or Three Phases 200V/220V/380V/400V or 400VA
