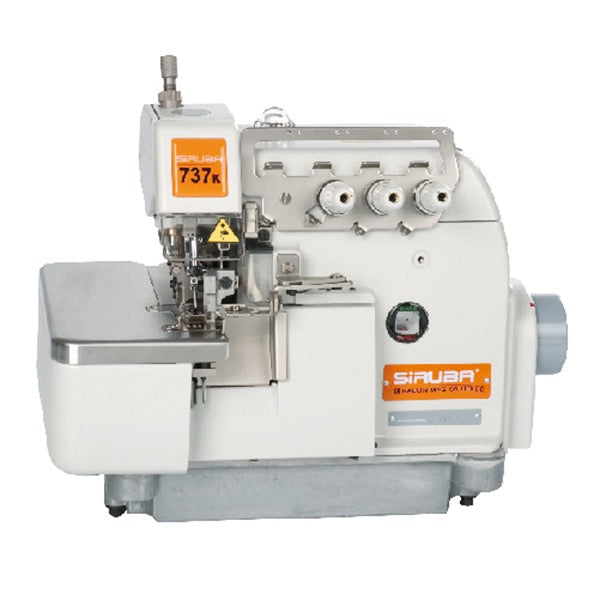

SIRUBA 737K-504M2-04 3 Thread Overlock Industrial Sewing Machine Assembled with Servo Motor, Fully Submerged Table Setup Included
SIRUBA 737K-504M2-04 3 Thread Overlock Industrial Sewing Machine Assembled with Servo Motor, Fully Submerged Table Setup Included
For regular seaming on light to medium fabric.
A: Single row feed dog.
B: For regular seaming on light to medium fabric.
C: Mock 516 seaming For regular seaming on light to medium fabric.
D: For regular seaming on light to medium fabric.
Specially suitable for small production workshop, and fashion design studio. A variety of five different sewing types by changing number of needle and looper.
Features

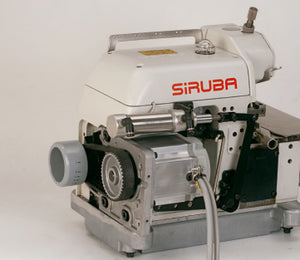

Sealed type direct drive needle bar mechanism
– Dust free and oil-leakage-free are due to entirely sealed needle bar section design.
– Direct drive needle bar system leads to high speed and long durability. No driving
loss of connecting-rod-drive needle bar system.
Active lubrication system
Needle bar and upper looper mechanisms are applied active oil supply and entirely sealed vacuum oil return system. The new system exceeds the traditional oil supply of rope type and dropping type.
Patented feed dog mechanism oil proof system
New double-lip type wiper is added to support the original double wiper. Oil proof function is upgraded.
Direct drive feeding mechanism
Direct drive mechanism prevents overdoing of differential feeding. No need to adjust the differential feed dog. No drive loss of connecting rod and type feeding mechanism.
New fabric trimmer mechanism
Low axis knife holder prevents cloth rolls up after trimming.
Needle bar height adjustment without opening machine.
Chainstitch fine tune mechanism: Open the rare cover to adjust stitch length easily.
– Needle plate thread groove leads to perfect loop.
– 5 cm height sewing area offers better cloth movement.
