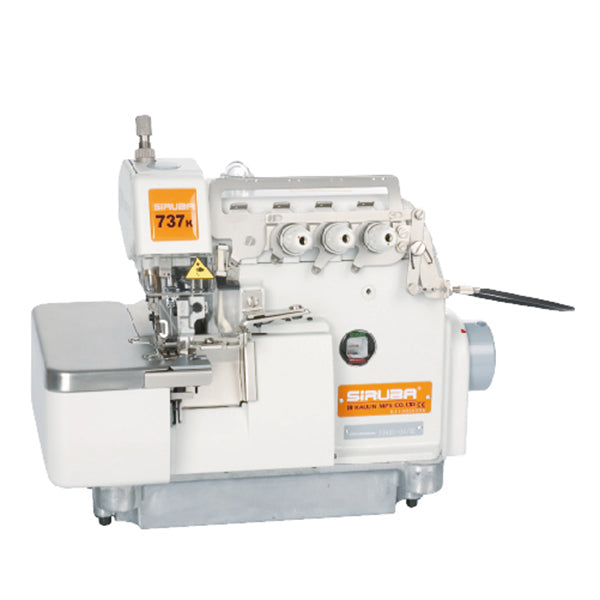

SIRUBA 737K-504M5-04/BK 3 Thread Overlock with Backlatch Industrial Sewing Machine Assembled with Servo Motor, Fully Submerged Table Setup Included
SIRUBA 737K-504M5-04/BK 3 Thread Overlock with Backlatch Industrial Sewing Machine Assembled with Servo Motor, Fully Submerged Table Setup Included
For sleeve and sideway sewing of underwear, sportswear etc.
Remark 1: Reduce needle thread’s tension, and adjust fabric guide to get the special outlook showing the needle thread on top side.
Remark 2: Replace upper looper by blind looper LP231 to make 2-thread overlock stitch
SIRUBA 737K-504M5-04/BK
Assembled, ready to sew!
Features
Sealed type direct drive needle bar mechanism
– Dust free and oil-leakage-free are due to entirely sealed needle bar section design.
– Direct drive needle bar system leads to high speed and long durability. No driving loss of connecting-rod-drive needle bar system.
Direct drive feeding mechanism
Direct drive mechanism prevents overdoing of differential feeding. No need to adjust the differential feed dog. No drive loss of connecting rod and type feeding mechanism.
New fabric trimmer mechanism
Low axis knife holder prevents cloth rolls up after trimming.
– Needle bar height adjustment without opening machine.
– Lower looper holder fine tune mechanism.
–Chainstitch fine tune mechanism: Open the rare cover to adjust stitch length easily.
– Needle plate thread groove leads to perfect loop.
– 5 cm height sewing area offers better cloth movement.
